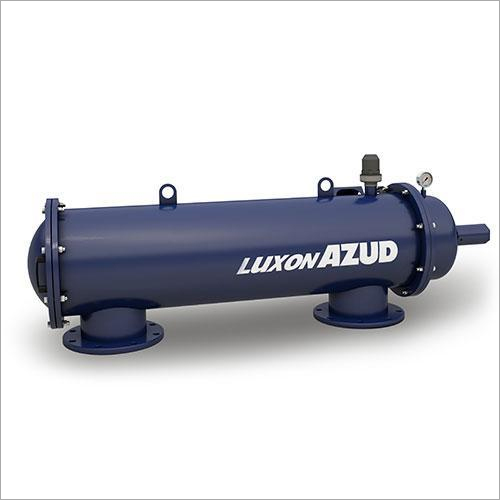

LUXON LXE

Product Description

Features And Advantages

Resistance

Resistant Material

The Screen Is Made Of High Quality Stainless Steel Which Is Very Resistant To Corrosion.

Energy Efficient

The Consumption During The Flushing Cycle Is Minimal

Wide Filtration Range

Available Screen Ranges From 10 To 1000 Micron

Versatility

Have Sizes From 3to 20

Time Saving

The Filtration Process Continues During The Flushing Cycle

Easy Installation

The Filters Are Delivered Ready To Be Installed. Weave Screen Element.

Additional Information

Azud Luxon Lxe Filters Are Mainly Used For Continue Supply Of Filtered Water Even During The Flushing Cycle.

How Does It Work

The Water Flows Into The Filter Through A Pre-Filter, And Then To The Inside Of The Screen. After This, Water Flows Through The Screen And The Particles Which Are Retained On The Inside Of The Screen Filter Element. The Filtered Water Then Flows Out Through The Outlet Manifold. Flushing Cycle Starts, When The Pressure Differential Increases To The Pre-Determined Level. A Hydraulic Valve Opens On The Drainage Outlet Activating The Azud Flex Protect System Which Generates An Helical Movement Along The Screen To Vacuum Up The Captures Particles From The Screen. The Captured Solids Are Expelled Through The Drain Valve. It Has Flushing Time That Is Pre-Determined By The Controller. When The Cycle Is Complete The Flush Valve Closes And The Process Ends. The Whole Process Uses A Minimal Amount Of Water.
